SG-EE

适合材质:

Specifications		Projection size		Black part/mm		Screen shell dimensionsLWH（mm)				product packaging size		Weight

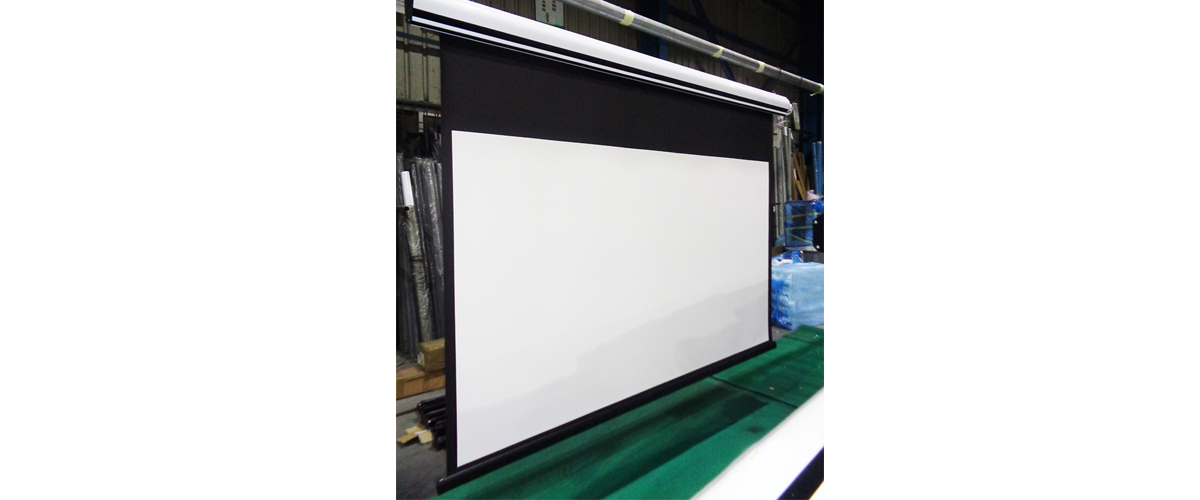

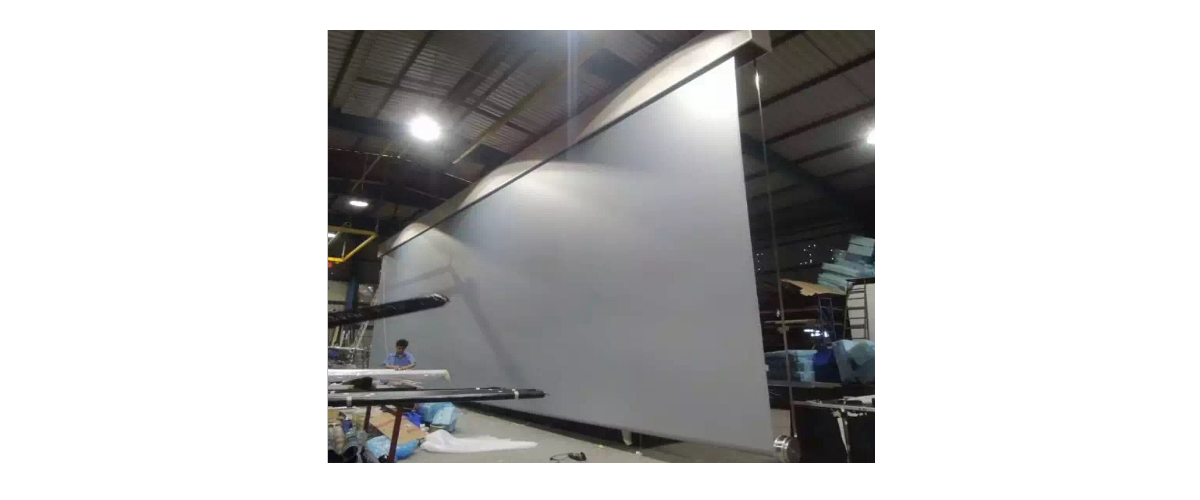

Large scale electric engineering curtain SG-EE
Projection ratio	inch	W/mm	H/mm	L.R	Up/mm	Electric cable	Pipe electric cable	W/mm	H/mm	L	W*H	≈KG
4:3	180	3658	2743	60	80-100	3888	4068	120	150	housing+70	190*170	30-35
4:3	200	4064	3048	60	80-120	4294	4474	120	150	housing+70	190*170	35-40
4:3	250	5080	3810	60	80-120	5370	5550	170	220	Wooden Case		130
4:3	300	6096	4572	60	80-120	6406	6586	190	260	Wooden Case		180
4:3	350	7112	5334	60	80-120	7422	7602	190	260	Wooden Case		220
4:3	400	8128	6096	60	80-120	8448	8628	240	300	Wooden Case		260

16:9	180	3985	2242	60	300-400	4215	4395	120	150	housing+70	190*170	30-35
16:9	200	4428	2491	60	300-400	4658	4838	120	150	housing+70	190*170	35-40
16:9	250	5535	3113	60	300-400	5845	6025	170	220	Wooden Case		130
16:9	300	6642	3736	60	300-400	6952	7132	190	260	Wooden Case		180
16:9	350	7749	4359	60	300-400	8069	8249	240	300	Wooden Case		220
16:9	400	8856	4982	60	300-400	9176	9356	240	300	Wooden Case		260
