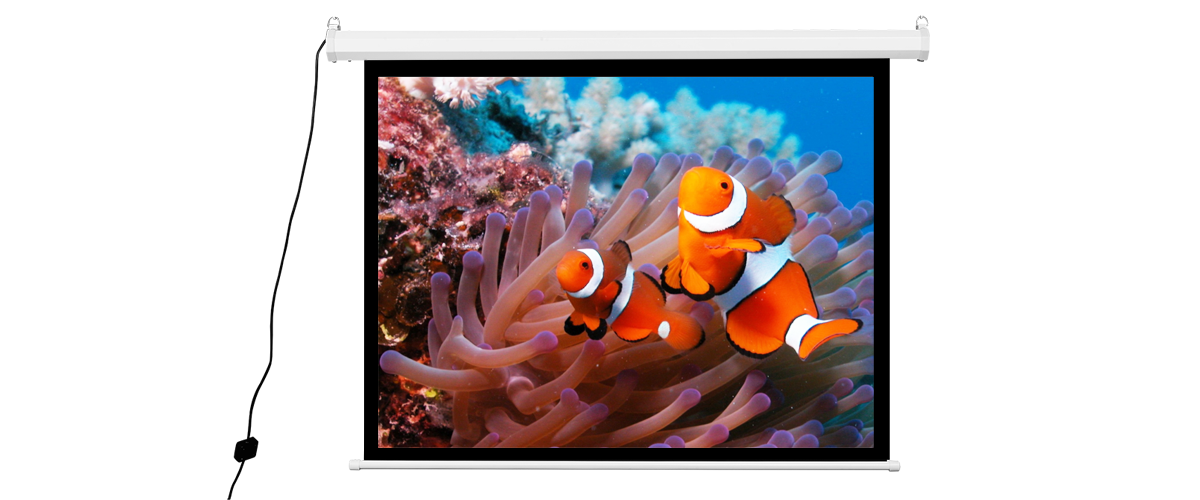

SG-LE8

适合材质:

Specifications		Projection size		Black part/mm		Screen shell dimensionsLWH（mm)
SG-LE8 Table Unit: mm
Projection ratio	inch	W/mm	H/mm	L.R	Up/mm	Electric cable	Pipe electric cable	W/mm	H/mm
16:9	80	1771	996	40	500	2051	1946	90	110
16:9	92	2037	1146	40	500	2317	2212	90	110
16:9	100	2214	1245	40	500	2494	2389	90	110
16:9	106	2347	1320	40	450	2627	2522	90	110
16:9	120	2657	1494	40	300	2937	2832	90	110
16:9	133	2945	1656	50	300	3245	3140	90	110

16:10	80	1724	1078	40	500	2004	1899	90	110
16:10	92	1983	1239	40	500	2263	2158	90	110
16:10	100	2155	1347	40	500	2435	2330	90	110
16:10	106	2284	1428	40	450	2564	2459	90	110
16:10	120	2586	1616	40	300	2866	2761	90	110
16:10	133	2866	1791	50	300	3166	3061	90	110

4:3	72	1463	1097	30	60	1723	1618	90	110
4:3	84	1707	1280	30	60	1967	1862	90	110
4:3	100	2032	1524	40	60	2312	2207	90	110
4:3	120	2438	1829	40	60	2718	2613	90	110
4:3	150	3048	2286	50	80	3348	3243	90	110
