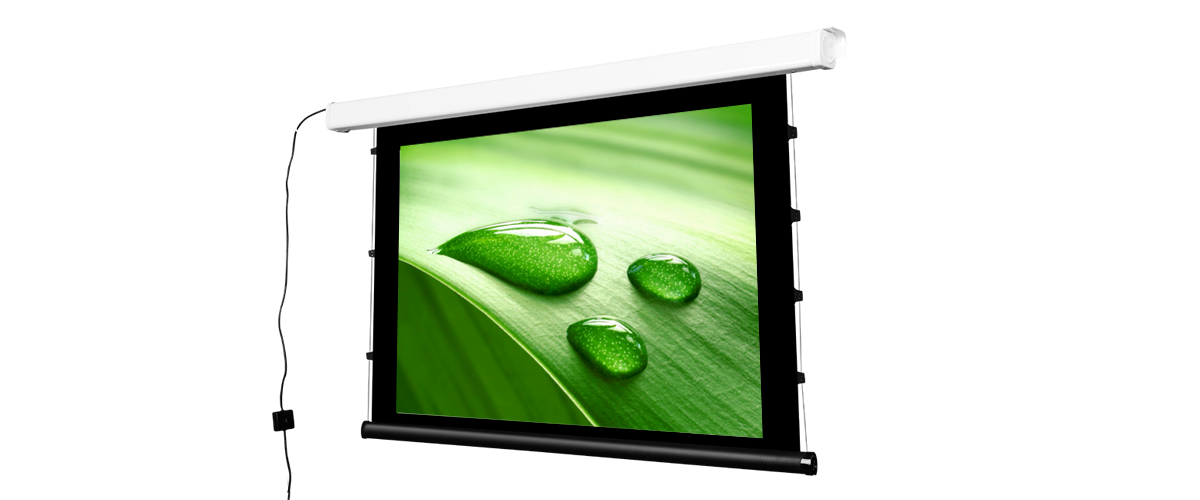

SG-LE4

适合材质:

Specifications		Projection size		Black part/mm		Screen shell dimensionsLWH（mm)
SG-LE4 Table Unit: mm
Projection ratio	inch	W/mm	H/mm	L.R	Up/mm	Electric cable	Pipe electric cable	W/mm	H/mm
16:9	80	1771	996	40	500	2161	2066	90	110
16:9	92	2037	1146	40	500	2427	2332	90	110
16:9	100	2214	1245	40	500	2604	2509	90	110
16:9	106	2347	1320	40	500	2737	2642	90	110
16:9	120	2657	1494	40	300	3047	2952	90	110
16:9	133	2945	1656	50	300	3335	3240	90	110

16:10	80	1724	1078	40	500	2114	2019	90	110
16:10	92	1983	1239	40	500	2373	2278	90	110
16:10	100	2155	1347	40	500	2545	2450	90	110
16:10	106	2284	1428	40	500	2674	2579	90	110
16:10	120	2586	1616	40	300	2976	2881	90	110
16:10	133	2866	1791	50	300	3256	3161	90	110

4:3	72	1463	1097	30	60	1853	1758	90	110
4:3	84	1707	1280	30	60	2097	2002	90	110
4:3	100	2032	1524	40	60	2422	2327	90	110
4:3	120	2438	1829	40	60	2828	2733	90	110
4:3	150	3048	2286	50	80	3438	3343	90	110
