SG-AE7

适合材质:

  • Pull wire material:

    High gain micro perforated sound curtain

    Micro perforated sound screen

    4K fine twill woven soundproof screen

    High definition diagonal woven soundproof screen

    Metal soundproof screen

    Black crystal anti light and transparent sound curtain

    Black crystal anti light curtain

    Short focal black grid anti light curtain

    WS Pro 4k

    GS PRO

    Metal Soft 4

    Non cable material:

    WGF Pro 4K

    WGF RRO


  • 产品详细资料下载

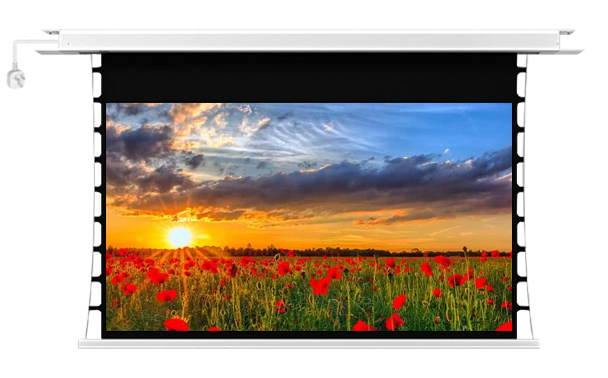

Ceiling Cable Hidden Curtain Size Table Unit: mm
sizeExternal dimensionsL*W*H（mm）Total length of extended decorative cover plateSize of ceiling groove L * W * H (mm)
72inch1992*141*12721822122*120*>130
84inch2258*141*12724482388*120*>130
92inch2430*141*12726202560*120*>130
100inch2608*141*127 27982738*120*>130
106inch2735*141*12729252865*120*>130
110inch2841*141*12730312971*120*>130
120inch3070*141*127 32603200*120*>130
133inch3343*141*12735333473*120*>130
150inch3726*141*12739163856*120*>130

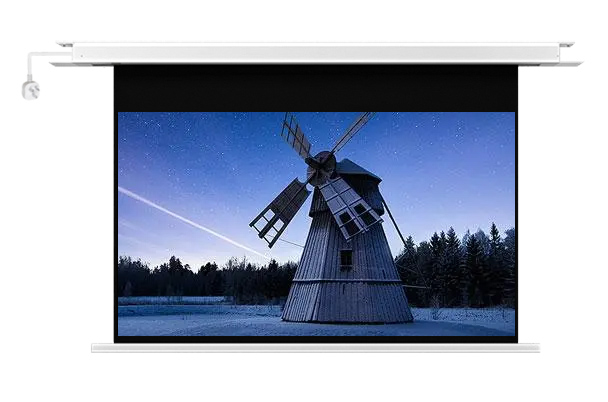

Ceiling non line concealed curtain size chart unit: mm
sizeExternal dimensionsL*W*H（mm）Total length of extended decorative cover plateSize of ceiling groove L * W * H (mm)
72inch1894*141*12720842024*120*>130
84inch2160*141*12723502290*120*>130
92inch2332*141*12725222462*120*>130
100inch2510*141*127 27002640*120*>130
106inch2637*141*12728272767*120*>130
110inch2758*141*12729482888*120*>130
120inch2987*141*127 31773117*120*>130
133inch3260*141*12734503390*120*>130
150inch3643*141*12738333773*120*>130
